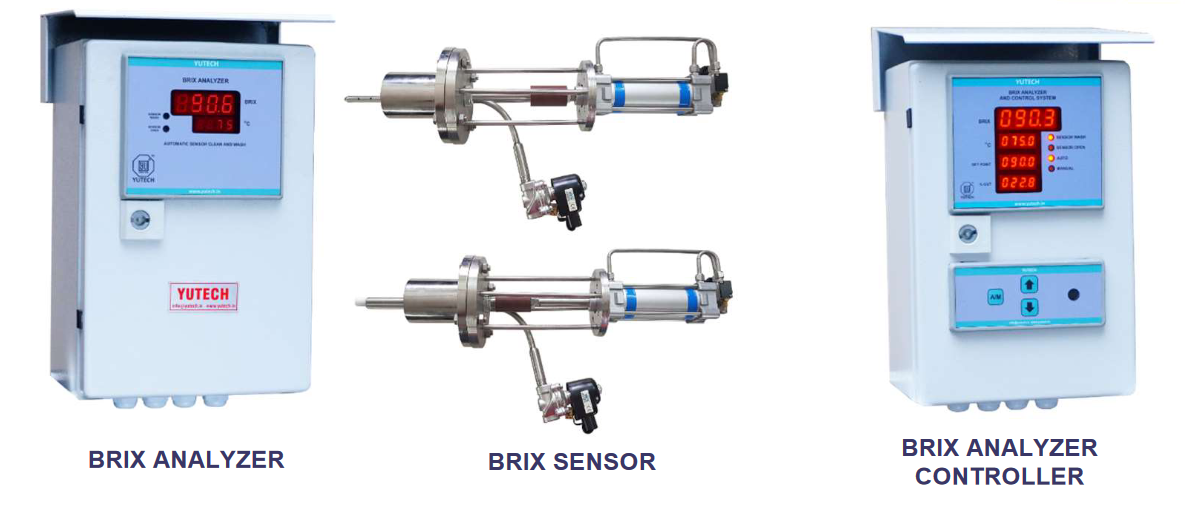

BRIX ANALYZER (HIGH-FREQUENCY BRIX ANALYZER)
AND AUTO-RETRACTABLE SELF-CLEANING BRIX SENSOR
Brix Analyzer and Sensor combination targets sensing of Suspended Solid Content (Brix) in Slurries or Syrups like
Sugar Massecuite, Sugar Syrup, Sugar Melt and Molasses. Brix Analyzer plays a crucial role in Sugar Process Automation and helps in Stabilizing the overall Sugar Process.
The YUTECH Intelligent Programmable Brix Analyzer is a State-of-the-Art System having Built-in Fuzzy Logic forAutomatic Purity Compensation to Accurately Sense, Analyze, Calculate and Derive Massecuite Brix within aBand of varying Purity with Temperature Compensation. This Logic is called Brix Equation and it results inaccurate Brix Sensing.
The YUTECH Brix Sensor is Auto-Retractable Self-Cleaning and Self-Washing Brix Sensor. This techniqueprevents Media Deposits on Sensor Electrode thus always results in Accurate Readings.
Accurate Brix reading ensures better Process Control and helps to maintain constant Massecuite / Melt /Molasses / Syrup Quality and Steam / Vapour Requirement thus results in Higher Sugar Production Efficiencyand Minimum Process Losses.
- The Brix Sensor Detects Deviation in Electric Signal with respect to changes in the Brix of a Solution whose Brix is to be measured.
- This Signal Deviation is then Processed in the Analyzer to obtain a Brix Reading
- YUTECH Brix Analyzer is equipped with Intelligent Auto Purity Compensation Algorithm to derive the Brix accurately in Massecuites of varying Purity
- Very Easy Calibration and Online Brix Compensation Recalibration
- In-Built Automatic Temperature Compensation
- In-Built Self Cleaning and Washing of Sensor with pre-adjustable timing cycle
- 4-20 mA Output, Separate Modbus and Ethernet Communications
- On-line Calibration Software "YUTECH-AccessApp" provides Remote Access to the Brix Analyzer for Calibration, Compensation, and Trouble Shooting.
Innovative Features For Ease Of Operation And To Save On Installation Cost And Materials:
- Built-In Brix Equation For Purity Compensation: To Accurately Sense, Analyze, Calculate Andderive Brix Within A Band Of Varying Slurry, Massecuite Or Syrup Media Purity.
- Built-In Temperature Compensation: To Accurately Sense, Analyze, Calculate, And Derive Brixwithin A Band Of Varying Temperature.
-
Built-In Pid Controller And Ethernet Communication For Controller Models:
- Highly Accurate Fuzzy Logic Pid Controller Developed Especially For Process Control Andflow Control Applications

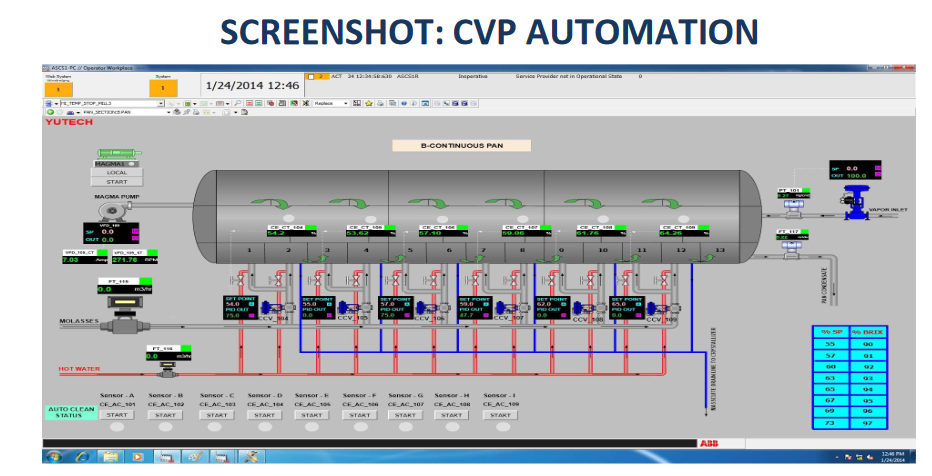

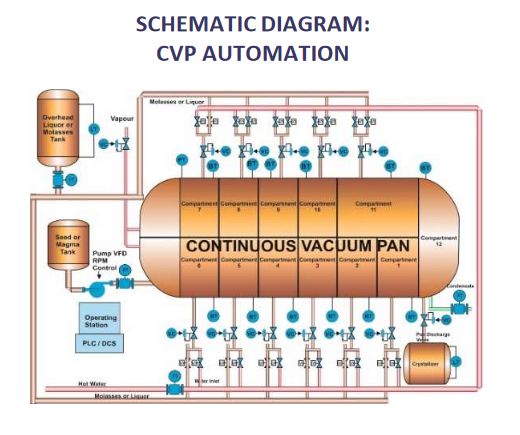

- CVP Pan Chamber Control Logic Built Especially For Continuous Vacuum Pan Operations

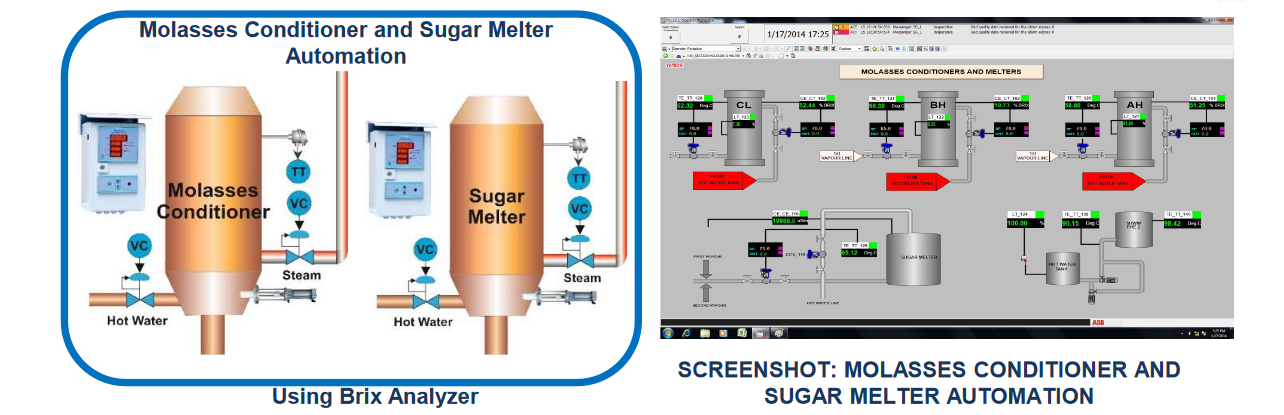

- Sugar Melter And Molasses Conditioner Control Logic
- Remote Set Variable Facility.
-
Built-In 3-Point Auto/Manual Station To Select Control Output From:
- Selector Switch for Local PID Output or DCS/PLC PID Output.
- Manual Output for Trouble Shooting.
Technical Specifications:
Product Code:
Brix Analyzer: A15BAT-BSRT-SCW-FM, Brix Analyzer With Controller: A15BATC-BSRT-SCW-FM
- Power Supply: 85 - 265 VAC, 50 - 60Hz.
- Analyzer Enclosure: IP67 Field Mounted Dust and Moisture Proof.
- Input: HF Brix Sensor Signal And Rtd Signal From The Brix Sensor
- Keyboard: A Keyboard With 5 Keys Is Provided In The Analyzer
- Display: 4-Digit Led Dual Display, LED
- Calibration can be done from :
- Display: Easy Online Calibration And Offset Recalibration Facility
-
Signal Output:
- 4 - 20 MA Analyzed Brix Output
- 4 - 20 MA Controller Output (In Controller Models)
- 2 Potential-Free Relay Outputs
Brix Sensor: Product Code A15BSRSCW24SS / A15BSRSCW24SM
- MOC Brix Sensor: SS304 And PTFE For Both Models
- MOC RTD : SS316 For Both Models
- MOC Sensor Body And Flange Mounting Assembly: A15BSRSCW24SS: SS304, A15BSRSCW24SM: MS
- Mounting: Flange Mounted
- Solenoid Valve For Washing, Pneumatic Cylinder Assembly For Periodic Sensor Cleaning
- Hose Pipe For Water Intakeembly For Periodic Sensor Cleaning
