YUTECH A10 SERIES MODBUS RTU CARD, PROCESS INDICATOR, JUMBO DISPLAY, TRANSMITTER, ISOLATORS, AUTO-MANUAL STATION AND CONTROLLER

MODBUS RTU SERIAL COMMUNICATION CARDS:

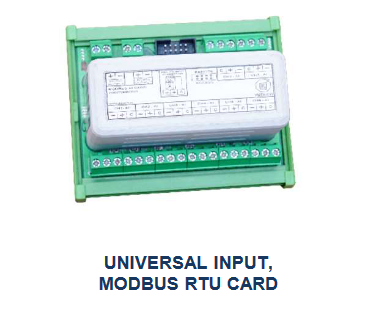

Universal Input Analog Input Card: (Product Code: A10SMRDCU8)

Power Supply: 24VDC
Input: 4-20mA / 0-5VDC / RTD / TC (K-Type)
Analog Input Resolution: 16 Bit
Number of Channels: 8
Communication: RS 485 (Modbus RTU)

Digital Input Card: (Product Code: A10SMRDCD8)

Power Supply: 24VDC
Binary Input State Voltage: 24VDC High, 2VDC Low, 8 Channel
Number of Channels: 8
Communication: RS 485 (Modbus RTU)

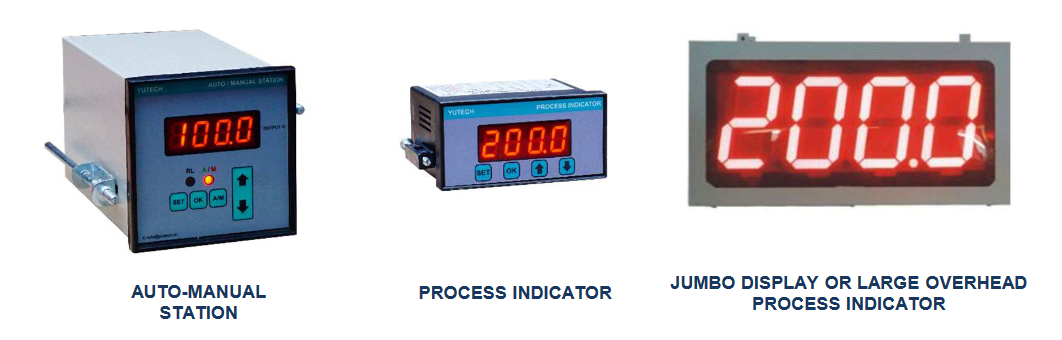

PROCESS INDICATORS, CONTROLLERS, AUTO-MANUAL STATIONS, JUMBO DISPLAYS:
TECHNICAL SPECIFICATIONS:

Power Supply: 85 - 265 VAC, 50 - 60Hz
Analyzer Enclosure: Panel Mounted DIN 96 x 48, DIN 96 x 96 (AM Station).
Input:
- Universal: 4-20mA Current, 0-5VDC Voltage, RTD-PT100, Thermo-Couple K Type / J Type Standard. Other inputs like B, S, R and T Thermocouple and Frequency Input on request.
- External Potentiometer (2K-Ohm) Connection for AM Station.
Calibration can be done from:
- Keyboard: Keyboard with 4 Keys is provided in the Transmitter
Display
- Process Indicator and Auto-Manual Station:
  - 4 Digit LED Display
- Jumbo Display / Large Overhead LED Display (Single and Dual Side Display)
  - 4 Digit LED Display of Size 2", 2.8", 4", 6", 8", 10"
  - 8 Digit LED Display of Size 2", 2.8", 4", 6", 8", 10" (For Totalizer Application)
Signal Output:
- 4 - 20 mA (Scaled and Retransmitted Output)
Digital Output:
- Potential-Free Relay Output R1 for Input-1 and R2 for Input-2, Contact Current Rating: 2 Amps @230VAC.

PRODUCT CODES:
PROCESS INDICATOR:
PRODUCT CODE: A10PIACU1C1R2PM48

JUMBO DISPLAY:
PRODUCT CODE: A10JDACU1C1R2OH02

AUTO-MANUAL STATION (WITH EXTERNAL POTENTIOMETER FACILITY):
PRODUCT CODE: A10AMACU2C1R2PM96: First Universal Analog Input for the Process / Control Variable while the Second Input is for 2K-Ohms External Potentiometer (Manual Operation), this feature is given so that the user can easily change the Pot if it is damaged after prolonged use, without having to open the instrument.

PID CONTROLLER:
PRODUCT CODE: A10PCACU2C1R2PM48

TIME PROPORTIONATE PID CONTROLLER:
PRODUCT CODE: A10TPACU2C1R2PM48

TUNIVERSAL INPUT ANALOG INPUT CARD:
PRODUCT CODE: A10SMRDCU8

UNIVERSAL INPUT DIGITAL INPUT CARD:
PRODUCT CODE: A10SMRDCD8

DECODING PRODUCT CODES:

A10PIACU1C1R2PM48: A10PI is the Product Category - A10 SERIES, PROCESS INDICATOR
- AC means AC Power Supply (85 - 260VAC, 50-60Hz) and DC means 24VDC Power Supply
- Analog Input: U1 / U2 Means 1 or 2 Channels Universal Input
- Analog Output: C1 / C2 Means 1 or 2 Channels 4-20mA Current Output
- R2 means 2 Potential-Free Relay Outputs.
- PM means Panel Mounted Enclosure (48 means 96x48mm and 96 means 96x96mm)
A10AMACU2C1R2PM96: AM is AUTO-MANUAL STATION
A10JDACU1C1R2OH02 - JUMBO DISPLAY
- JD means Jumbo Display or Overhead Large Display
- OH02 means Overhead Display Enclosure of 2" display size.
- Similarly, H03 is 2.8", H04 is 4", H06 is 6", H08 is 8", H10 is 10"
- Therefore, A10JDACU1C1R2OH06 is a Jumbo Display having a 6" Display Size and likewise
A10SMRDCU8 and A10SMRDCD8 - MODBUS CARDS
- SMR means Serial Communication Card having Modbus RTU Protocol
- DC means 24VDC Power Supply
- U8 means 8 Channels Universal Input, D8 means 8 Channels Digital Input
