SIGNAL ISOLATOR: DC CURRENT ISOLATOR DUAL INDEPENDENT INPUT AND OUTPUT (DIDO)

PRODUCT CODE: A-ISO-DC-C2-C2-S, A-ISO-XX-C2-C2-S

INPUT: TWO CHANNELS OF INDEPENDENT 4-20mA INPUTS

OUTPUT: TWO CHANNELS OF INDEPENDENT 4-20mA

OUTPUTS ACROSS INDEPENDENT BARRIERS

APPLICATION:

PLC / DCS PANELS, Save Space In Panel, Use One Isolator For 2 Separate Channels.

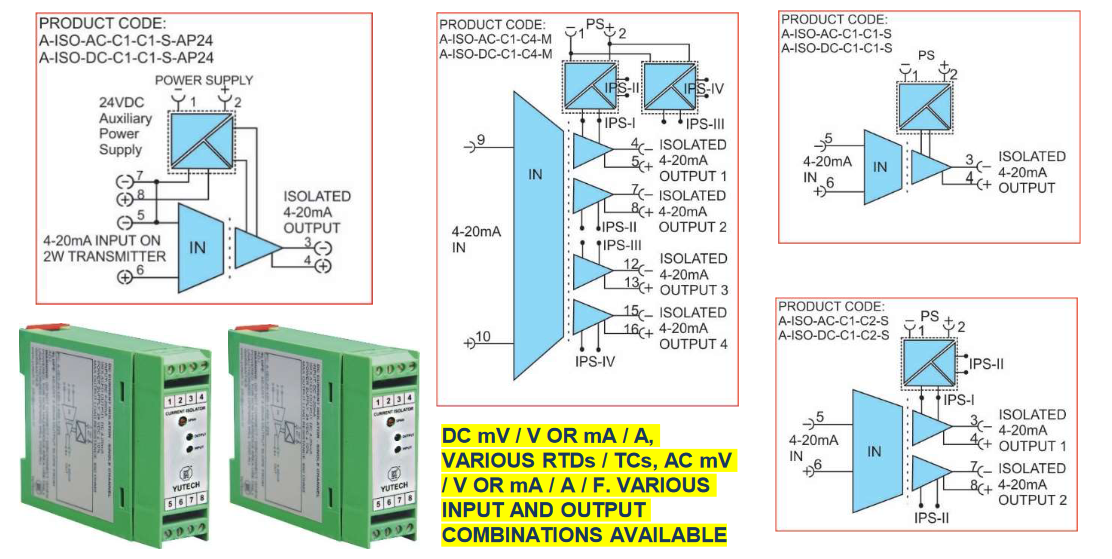

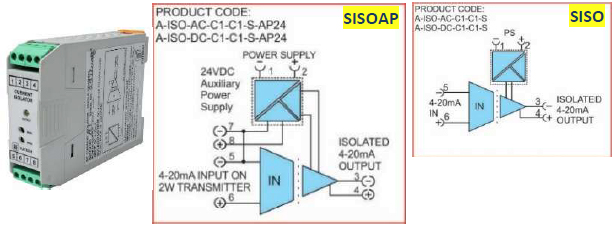

SIGNAL ISOLATOR: DC CURRENT ISOLATOR SINGLE INPUT

SINGLE OUTPUT (SISO): A-ISO-AC-C1-C1-S, A-ISO-DC-C1-C1-S

SIGNAL ISOLATOR: DC CURRENT ISOLATOR SINGLE INPUT

SINGLE OUTPUT WITH AUXILIARY POWER SUPPLY (SISOAP):

A-ISO-AC-C1-C1-S-AP24, A-ISO-DC-C1-C1-S-AP24

INPUT: 4-20mA, OUTPUT: 4-20mA

APPLICATION:

Use In Remote Location, Using Available Local Ac Power, 24Vdc Aux Power Supply Powers Any 2-Wire Transmitter. Saving Extra Wiring And Reduced Maintenance.

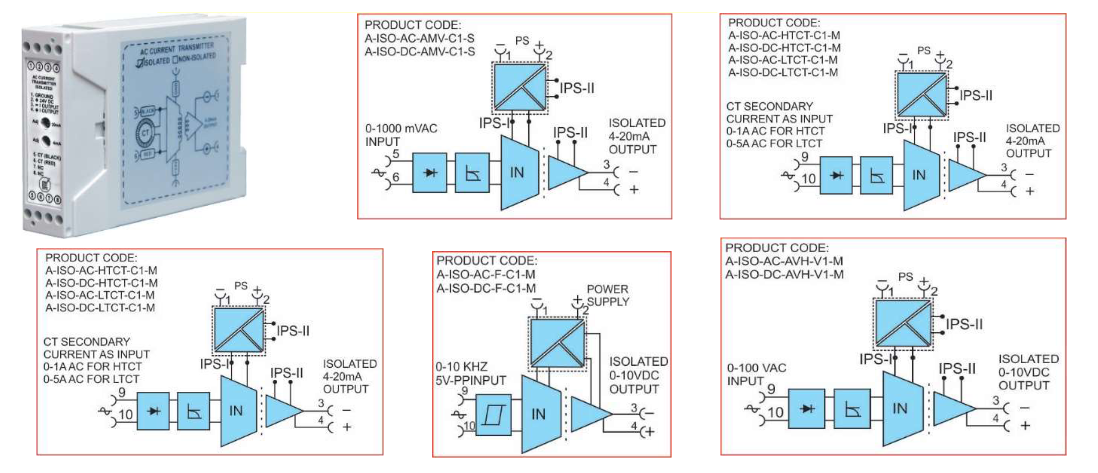

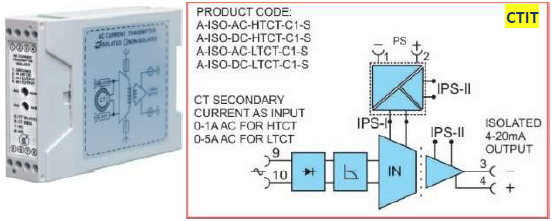

SIGNAL ISOLATOR: CURRENT TRANSFORMER SIGNAL CONVERTER

ISOLATING TRANSMITTER (CTIT)

PRODUCT CODE: A-ISO-AC-LTCT-C1-S, A-ISO-DC-LTCT-C1-S, A-ISO-AC-HTCT-C1-S, A-ISO-DC-HTCT-C1-S

IN: 0-1A AC OR 0-5A AC FROM HT-CT OR LT-CT, OUT: ISOLATED 4-20mA.

APPLICATION:

Ac Current Measurement Of Any Machine / Equipment. Ex: Any Motorized Drive, Pump Drive, Id/Fd Fan Drive Etc. As A Safety Device, Ctit Enables 4-20MA Signal To Be Transmitted To The Control Panel Without Directly Taking Ct Current To The Panel And Also Avoids A Ct Burst In Case Of Accidental Open Circuit.

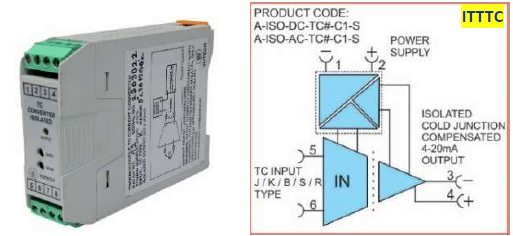

SIGNAL ISOLATOR: ISOLATING TEMPERATURE TRANSMITTER WITH THERMOCOUPLE INPUT (ITTC)

PRODUCT CODE: A-ISO-AC-TC#-C1-S, A-ISO-DC-TC#-C1-S

INPUT: THERMOCOUPLE K TYPE IS BY DEFAULT, J, R, T, AND S ON SPECIAL ORDER. OUTPUT: ISOLATED 4-20mA

APPLICATION:

Temperature Sensing Using Thermo-Couple. Can Be Placed In A Field Jb And Avoid Use Of Expensive Compensation Cables. As Cold Junction Compensated Temperature Is Transmitted AS 4-20mA.

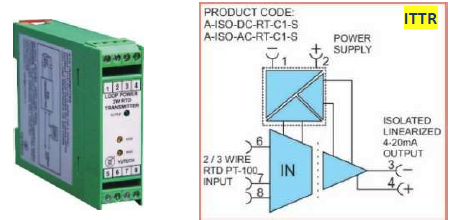

SIGNAL ISOLATOR: ISOLATING TEMPERATURE TRANSMITTER WITH 3- WIRE RTD Pt100 INPUT (ITTR)

PRODUCT CODE: A-ISO-AC-RT-C1-S, A-ISO-DC-RT-C1-S

INPUT: 3-WIRE RTD Pt-100; OUTPUT: 4-20mA

APPLICATION:

Temperature Sensing Using Rtd Pt-100. Can Be Placed In A Field Jb And Avoid Use Of 3-Wire Rtd Cables And Signal Loss Over Long Distances, Instead, Transmit 4-20Ma Safely To The Control Room Using A Shielded Pair.

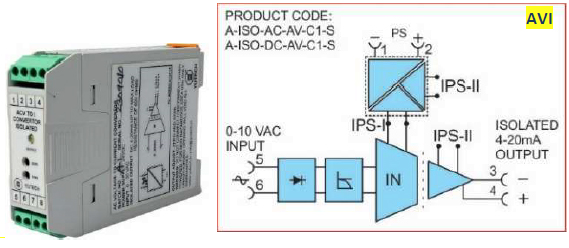

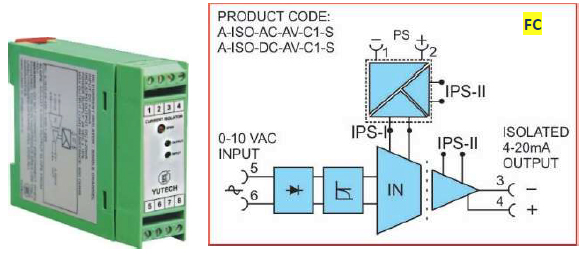

SIGNAL ISOLATOR: ISOLATING AC VOLTAGE TO CURRENT CONVERTER (AVI).

PRODUCT CODE: AC VOLTAGE TO CURRENT CONVERTER

TRANSMITTER: A-ISO-AC-AV-C1-S, A-ISO-DC-AV-C1-S

AC MILLIVOLT TO CURRENT CONVERTER TRANSMITTER:

A-ISO-DC-AMV-C1-S or A-ISO-AC-AMV-C1-S

AC HIGH VOLTAGE TO CURRENT CONVERTER TRANSMITTER:

A-ISO-DC-AVH-C1-S or A-ISO-AC-AVH-C1-S

INPUT: 0-10VAC (AV), 0-1000mVAC (AMV), 0-100VAC (AVH)

OUTPUT: ISOLATED 4-20mA

APPLICATION:

Measure And Transmit Any Non-Standard Ac Voltage Used For Control Applications And Connect It To Any Plc/Dcs Or Local Controller.

SIGNAL ISOLATOR: ISOLATING FREQUENCY TO CURRENT CONVERTER (FC)

PRODUCT CODE:

FREQUENCY TO CURRENT CONVERTER TRANSMITTER:

A-ISO-AC-F-C1-S, A-ISO-DC-F-C1-S

INPUT: 0-10KHz @ 1 - 10VAC

OUTPUT: ISOLATED 4-20mA

FREQUENCY TO CURRENT CONVERTER TRANSMITTER: A-ISO-AC-FH-C1-S, A-ISO-DC-FH-C1-S

INPUT: 0-10KHz @ 20 - 100VAC (PLEASE SPECIFY FREQUENCY AND VOLTAGE FOR YOUR APPLICATION)

OUTPUT: ISOLATED 4-20mA.

APPLICATION:

Measure And Transmit Any Standard Frequency Or Any Non-Standard Frequency Like A Tacho-Generator Used For Control Applications And Connect It To Any Plc/Dcs Or Local Controller.

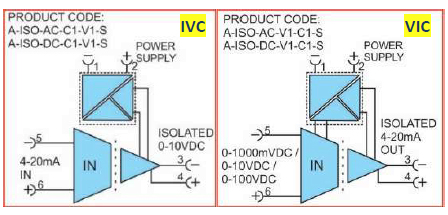

SIGNAL ISOLATOR: ISOLATING CURRENT TO VOLTAGE CONVERTER (IVC):

PRODUCT CODE: A-ISO-AC-C1-V1-S, A-ISO-DC-C1-V1-S

INPUT: 4-20mA, OUTPUT: ISOLATED 0-10VAC

SIGNAL ISOLATOR: ISOLATING VOLTAGE TO CURRENT CONVERTER (VIC)

PRODUCT CODE: VOLTAGE TO CURRENT: A-ISO-AC-V1-C1-S, A-ISO-DC-V1-C1-S

MILLIVOLT TO CURRENT: A-ISO-AC-MV-C1-S, A-ISO-DC-MV-C1-S

HIGH VOLTAGE TO CURRENT: A-ISO-AC-VH-C1-S, A-ISO-DC-VH-C1-S

INPUT: V1: 0-10VDC / MV: 0-1000mV (0-2000mV ON REQUEST) /
VH: 0-100VDC

OUTPUT: ISOLATED 4-20mA

APPLICATION:

Convert Range Of Voltages To Standard 4-20MA.
IVC: Convert Current To Standard Voltage.

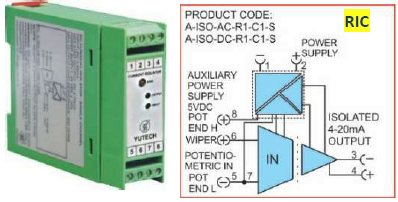

SIGNAL ISOLATOR: ISOLATING RESISTANCE TO CURRENT CONVERTER (RIC)

PRODUCT CODE: A-ISO-AC-R1-C1-S, A-ISO-DC-R1-C1-S

INPUT: 0-1000 OHMS, OUTPUT: ISOLATED 4-20mA

APPLICATION:

RIC Is A Solution To The Common Problem Of Remote Manual Speed Control. It Is Used In A Variable Frequency Drive (Vfd), Where A Remotely Located Potentiometer Is Used To Vary The Drive Speed. It Avoids Problems Arising From Ground Looping Fault, Noise Due To Emi/Rfi, And Attenuation Arising From Long Distance Of Cable.

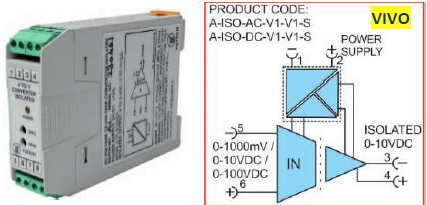

SIGNAL ISOLATOR: DC VOLTAGE ISOLATOR (VIVO)

PRODUCT CODE: A-ISO-AC-V1-V1-S, A-ISO-DC-V1-V1-S

VOLTAGE TO CURRENT: A-ISO-AC-V1-C1-S, A-ISO-DC-V1-C1-S

MILLIVOLT TO CURRENT: A-ISO-AC-MV-C1-S, A-ISO-DC-MV-C1-S

HIGH VOLTAGE TO CURRENT: A-ISO-AC-VH-C1-S, A-ISO-DC-VH-C1-S

INPUT: V1: 0-10VDC / MV: 0-1000mV (0-2000mV ON REQUEST) / VH: 0-100VDC

OUTPUT: 0-10VDC

APPLICATION:

Convert Any Standard Or Non-Standard Voltage Signal To A Standard Isolated Voltage Signal Of 0-10Vdc.
