FIELD MOUNTED ETHERNET SCANNER:

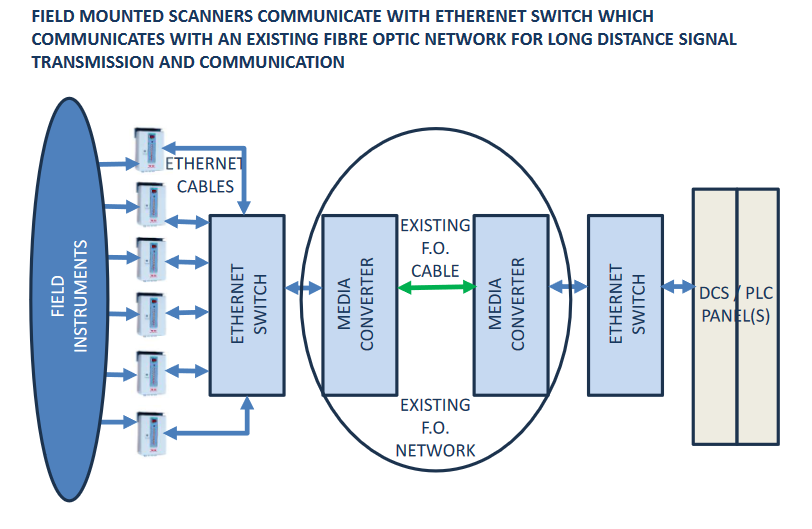

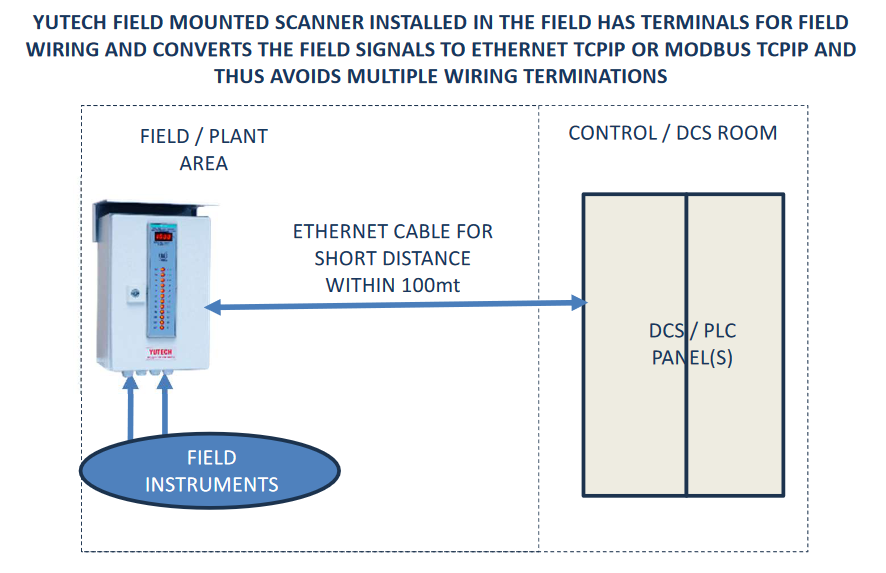

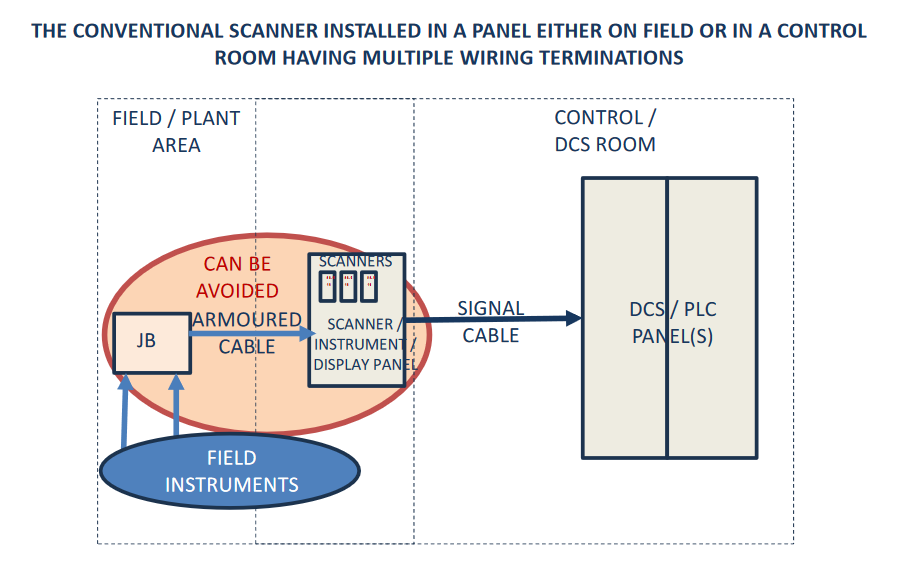

Field Mounted Ethernet Scanner is a system designed for convenience. It eliminates, Termination Blocks, Junction Boxes, and Wiring required for each of these devices. All Sensor / Transmitter Signal Wires are Terminated in this Scanner, and the Ethernet Cable can be taken to PLC / DCS / Computer saving a huge quantity of Wires and Labour. It can be terminated in the Ethernet side of your Fibre Optic Network for long-distance communications.
- 16-Channel Analog Input, 16-Bit Resolution.
- 2-Channel Analog Output, 12-Bit Resolution.
- 16 Relay Outputs with LED Indication.
- 4 Digit 7-Segment Dual Display.
-
Ethernet.
- Modbus TCPIP.
- Ethernet TCPIP.
-
RS 485 .
- Modbus RTU.
- Field Mounted, Dust and Moisture Proof Enclosure.
BUILT-IN COMMUNICATION LINKS:
- Ethernet: Modbus TCPIP or Ethernet TCPIP Communication Protocols.
- RS485: Modbus RTU.
- External Controller Calibration Facility from DCS / PLC- SCADA / HMI System via Ethernet.
- Control Variables can be accessed and changed from DCS / PLC- SCADA / HMI.
- USB Communication Facility: For Calibration from PC or Android using the System's USB Port.
- YUTECH Access App: Calibration Software can be installed on a PC or Android.
TECHNICAL SPECIFICATIONS:
- Power Supply: 85 - 265 VAC, 50 - 60Hz.
- Analyzer Enclosure: IP67 Field Mounted Dust and Moisture Proof.
-
Input: 16-Channel, 16-Bit Analog Input supporting:
- RTD - PT 100.
- Thermocouple.
- 4-20mA.
- 0-5VDC.
- Output: 2-Channel, 12-Bit Analog Output.
-
Calibration can be done from:
- Keyboard: A keyboard with 5 Keys is provided in the Analyzer.
- USB Port: for Windows / Android based YUTECH-AccessApp.
- Display: 4 Digit LED Dual Display, LED.
-
Signal Output:
- Potential-Free Relay Output for each Sensor Input (Contact Current Rating 2A @ 230VAC).
- Ethernet Communication Protocol: Modbus-TCPIP or Ethernet TCPIP on RJ485 Port.
Model Selection by Product Code:
-
FIELD MOUNTED 16-AI ETHERNET SCANNER: A15ETHSAACAI16R16FMEM.
- A15ETHSAACAI16R16FMEM: A15ETHSA is the A15 Product Category or Platform based Ethernet Scanner Analyzer.
- A15ETHSAACAI16R16FMEM: AC means AC Power Supply (85 - 260VAC, 50-60Hz).
- A15ETHSAACAI16R16FMEM: AI16 means 16-Channel 16-BitAnalog Inputs .
- A15ETHSAACAI16R16FMEM: R16 means 16 Potential-Free Relay Outputs. Relay 1 - 16 will operate on Setpoint for AI 1-16.
- A15ETHSAACAI16R16FMEM: FM means Field Mounted Enclosure.
- A15ETHSAACAI16R16FMEM: EM is for Ethernet (Modbus TCPIP).
-
FIELD MOUNTED 16-AI WITH 2-AO ETHERNET SCANNER: A15ETHSAACAI16AO2R16FMEM.
- A15ETHSAACAI16AO2R16FMEM: AO2 is 2-Channel Analog Output.
-
FIELD MOUNTED 16-AI WITH 2-AO ETHERNET SCANNER WITH USB:
- A15ETHSAACAI16R16FMEMUSB; A15ETHSAACAI16AO2R16FMEMUSB.
- A15ETHSAACAI16AO2R16FMEMUSB: USB is for USB Communication via C Type USB Port.
External Calibration can be achieved through Ethernet for DCS/PLC-SCADA/HMI systems. This allows for
easy access and modification of scaled variables. Process value data is also communicated for data
acquisition and storage within the same system if used in a Controller Mode.
A USB Communication Facility is available for PC or Android users via the system's USB port for
calibration. Our Calibration Software, YUTECH Access App, can be installed on a PC or Android device
for convenience.
